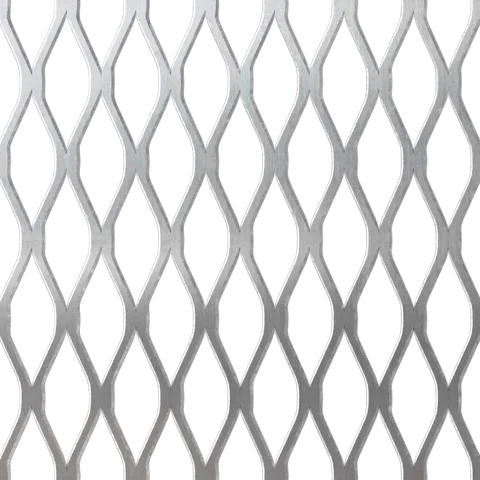

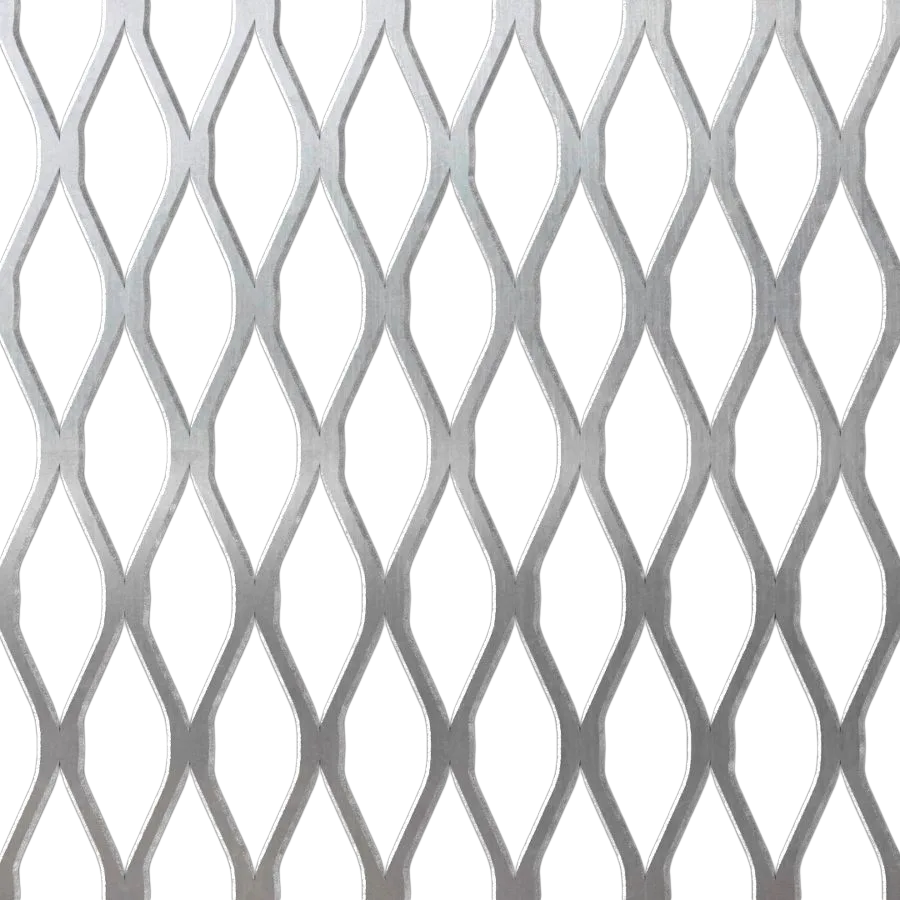

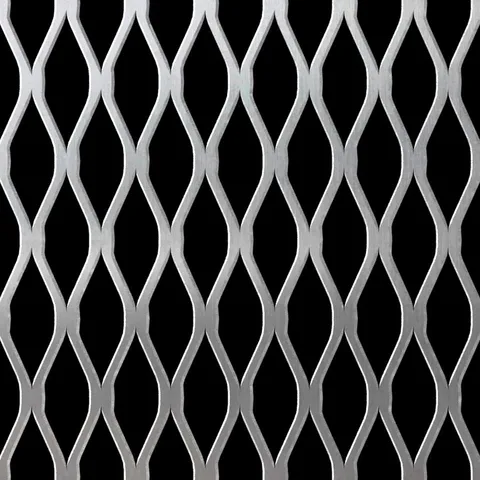

Name: 125F1444AL Flattened Aluminum Expanded Metal
Brand: Kingcats
SKU: 54

Technical Specifications

Critical values stay visible first. The full technical set is grouped below when needed.

Quick Read

Core Specification Snapshot

6 key specs+13 detailed

Item Number

125F1444AL

Primary Material

Aluminum (AL)

Material Finish

Mill Finish

Alloy, Grade or Type

Alloy 3003-H14 (3003H14)

Open Area %

66%

Application

Facades & Screens

Detailed Specifications

Specifications are grouped so you can scan key details quickly without a long page.

3 groups

Design Size - Short Way of Diamond (SWD)

23.44mm

Design Size - Long Way of Diamond (LWD)

53.34mm

Diamonds per Foot - Short Way of Diamond (SWD)

330.20mm

Diamonds per Foot - Long Way of Diamond (LWD)

144.78mm

Overall Thickness

2.39mm

Strand Thickness

2.39mm

Strand Width

4.01mm

Surface Treatments & Color Samples

Review coating colors and metal finish samples for PVDF, powder coating, anodizing, and natural metal finishes before sampling or production.

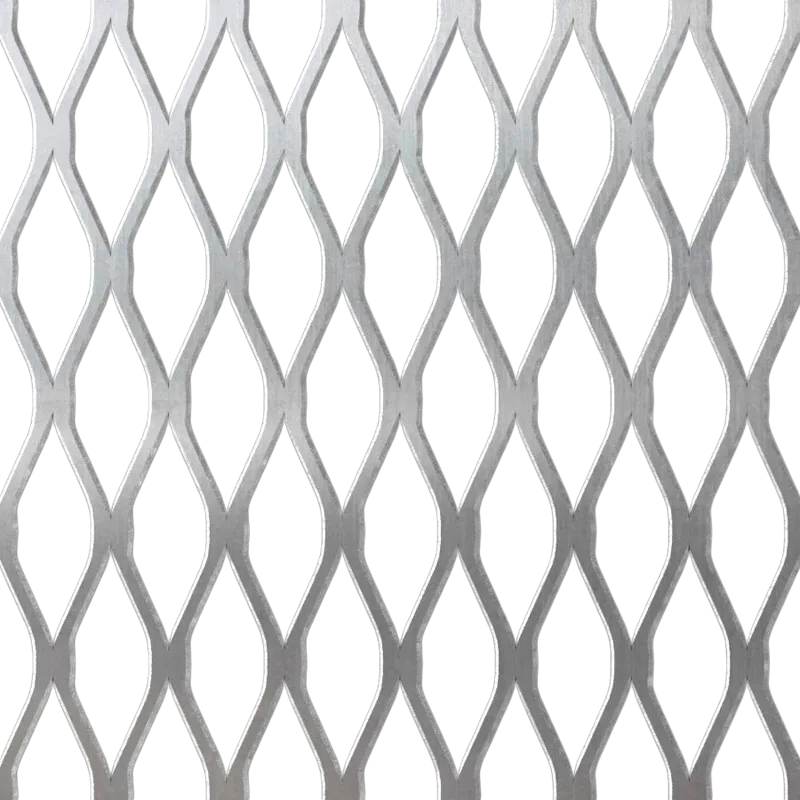

Current Product Finish

Mill Finish

AAMA / exterior color

PVDF Fluorocarbon

Architectural exterior coating for long-term weatherability, UV exposure, and stable color performance.

RAL / custom color

Electrostatic Powder Coating

Wide RAL color range with matte, fine-texture, and branded color options for custom production runs.

Metallic tone

Anodizing

Metallic aluminum finish options that retain the substrate character in clear, champagne, bronze, or black tones.

Natural metal

Natural Metal & Galvanized

Mill, brushed, galvanized, and clear-seal finishes keep the metal character visible while adding project-specific corrosion protection.

Custom Color MatchColor code

Palette

RAL 9016Traffic White

RAL 9005Jet Black

RAL 7035Light Grey

RAL 7016Anthracite Grey

GalvanizedHot-Dipped

Select the finish around exposure, target color, and inspection sample. We can match RAL colors, metallic tones, or natural metal textures before production. (MOQ applies)

Customization Options

We specialize in tailoring our expanded metal products to meet unique project requirements. Our engineering team can assist with:

Custom Apertures

Bespoke LWD and SWD dimensions for specific filtration or aesthetic needs.

Special Materials

Titanium, Copper, Brass, and high-performance alloys for extreme environments.

Advanced Finishes

PVDF coating, specialized anodizing, and multi-stage powder coating systems.

Precision Fabrication

CNC bending, laser cutting, and precision framing for complex structural components.

Consult with an Engineer

125F1444AL

Flattened, Aluminum, Alloy 3003-H14, Mill Finish, 3/4" No. .125 Flattened, 0.923" Short Way of Design (SWD), 2.100" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 66% Open Area

Flattened smooth surface

Diamond openings for airflow and visibility

66% open area

Cut sizes available for fabrication

Request Physical Sample
