Automotive Robotic Cell Safety and Cable Enclosure
Project Gallery
Multi-image project review
2 selectable views
Project Overview

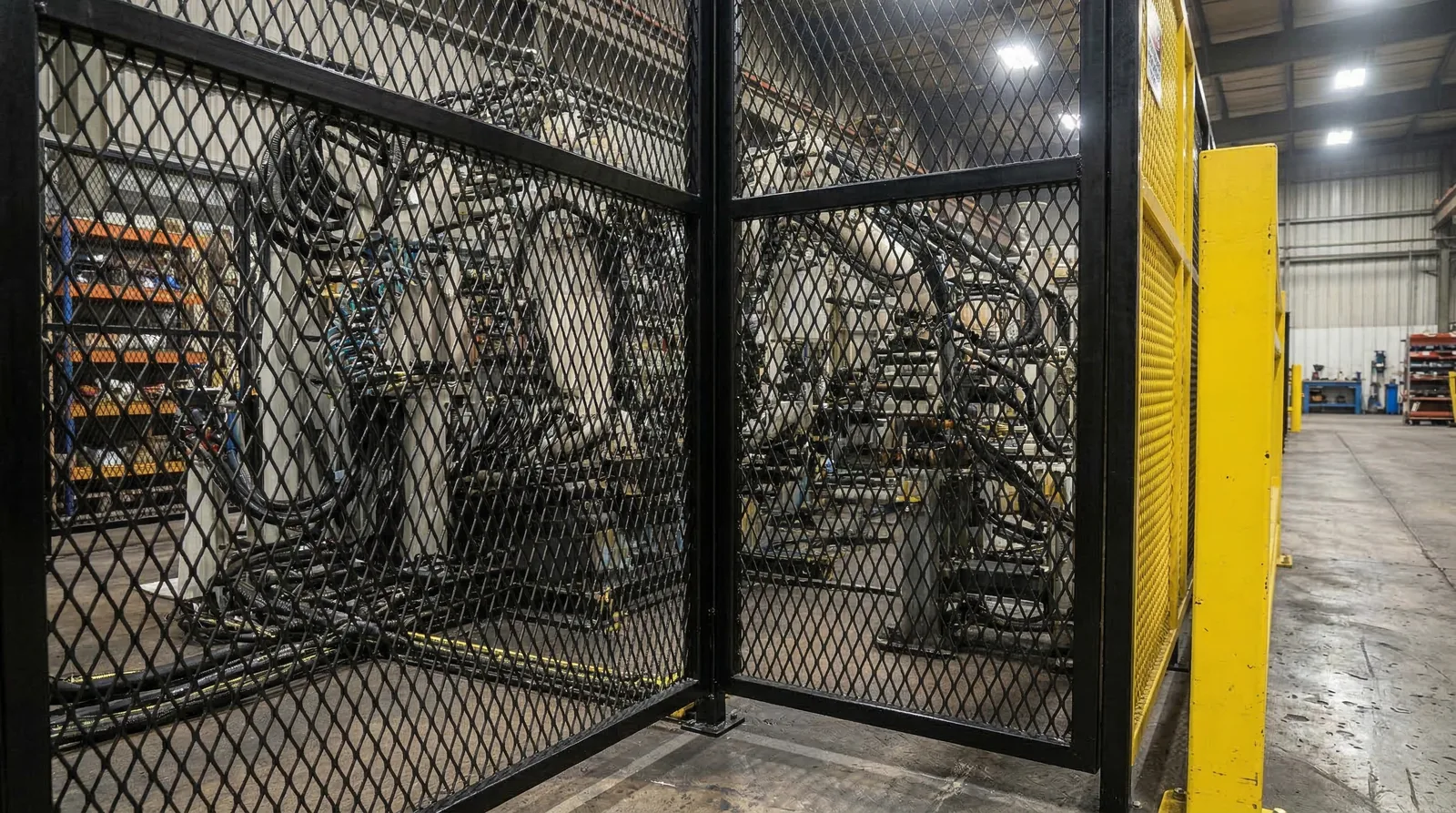

Heavy-duty expanded metal fencing protects personnel and cable bundles around a multi-robot automotive assembly cell.
01The Challenge
The automotive cell required a non-penetrable barrier that isolated operators and protected dense cable and hydraulic hose bundles while allowing ventilation.
02Our Solution

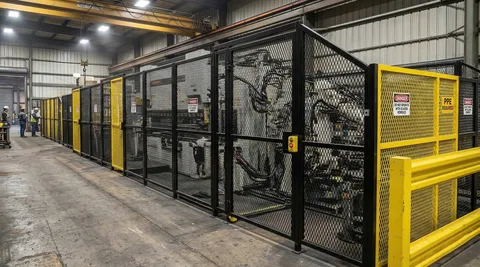

Heavy-duty expanded metal panels were installed with black frames and high-visibility yellow guards around the robotic work zone.
Key Results & Impact
Separated operators from multiple high-speed six-axis robots
Protected cables and hose bundles from impact
debris
and contamination
Preserved ventilation to prevent heat build-up
Kept daily monitoring and maintenance sightlines open
Technical Specs
Product Type
Heavy Duty Expanded Metal
Material
Galvanized Steel
Application
Machine Guards
Location
North America
